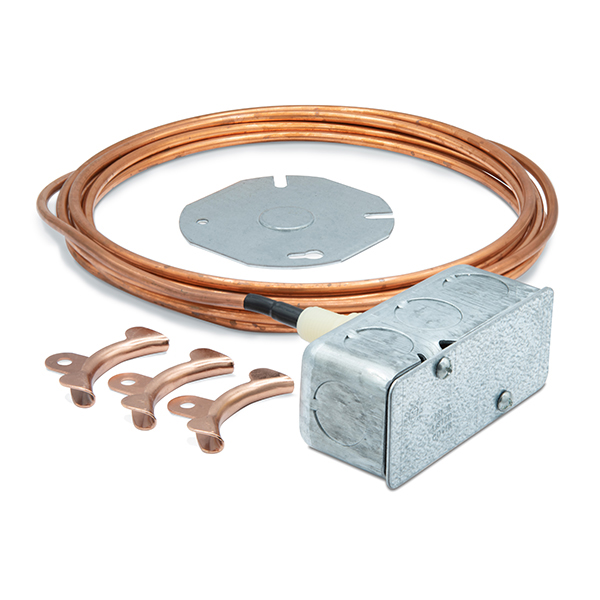

Mixed-Air Averaging Sensor – 12'
TS3008Description
100 ohm sensor. Use the provided capillary tube-mounting clips to arrange the sensor in a zig-zag pattern across the mixed air flow path.
Mixed-air sensor accuracy:
+/–0.1% @ 32°F (0°C)
Temperature coefficient:
0.00385 Ω/Ω/°C
Reference resistance:
1000Ω @ 32°F (0°C)
Compliance:
DIN IEC 751
Response time (90%):
- Air @1m/s: 25 seconds
- Air @3m/s: 17 seconds
Operating temperature:
–50 to 375°F (–45.6 to 190.6°C)
Maximum current:
5 mA; recommended: 1 mA
