Temperature Sensor with Override
TS3010Description

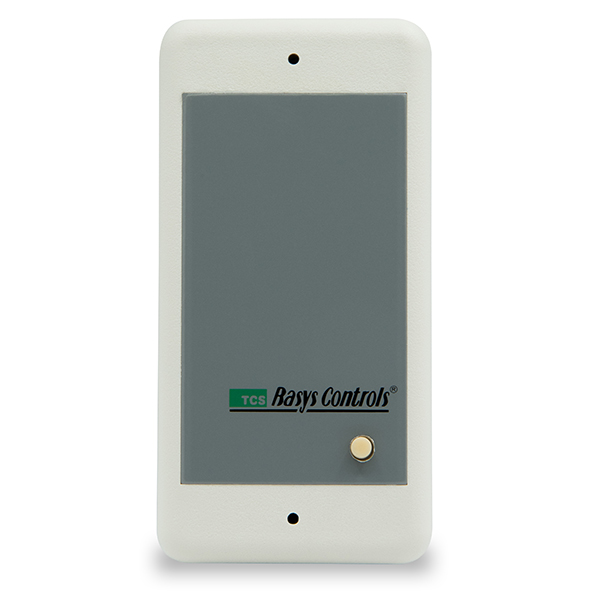

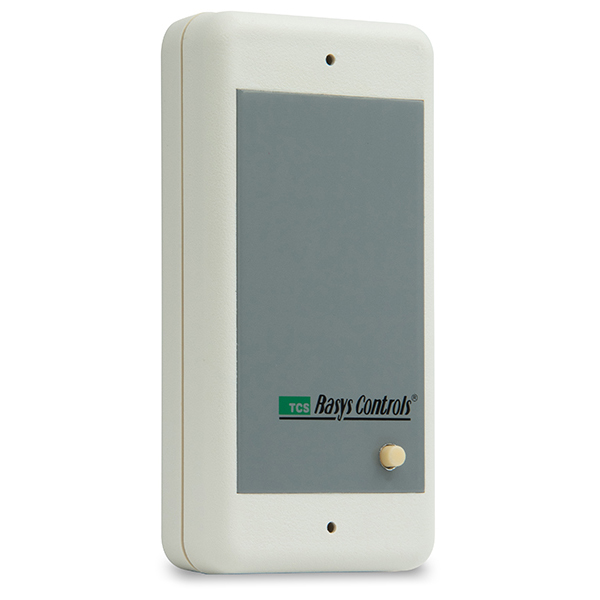

The TS3010 is a room-mount temperature sensor used in standard spaces. The sensor is enclosed in a ventilated ASB plastic housing with a plastic base. Units are suitable for mounting to dry wall or block, or to a standard 2″ X 4″ handy box using a TQ Series plate adapter.
Single-point sensor accuracy:
+/–0.1% @ 32°F (0°C)
Averaging sensor accuracy:
+/–1°F @ 70°F (21.11°C)
Temperature coefficient:
0.00385 Ω/Ω/°C
Reference resistance:
1000Ω @ 32°F (0°C)
Compliance:
DIN IEC 751
Response Time (Air @1m/s):
25 seconds
Response Time (Air @3m/s):
17 seconds
Operating temperature:
–50 to 375°F (–45.6 to 190.6°C)
Maximun current:
5 mA; recommended: 1 mA
