Remote SZ Temperature Sensor

TS3100

Description

For use with SZ Series SuperStats

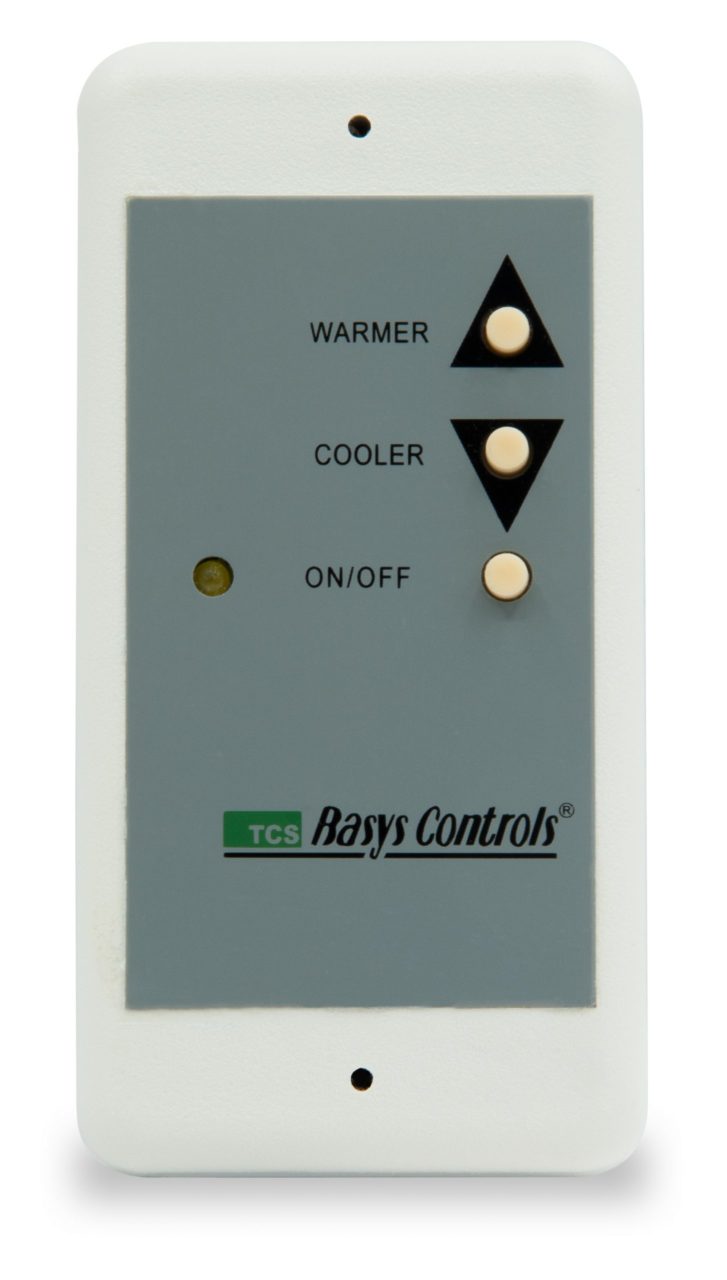

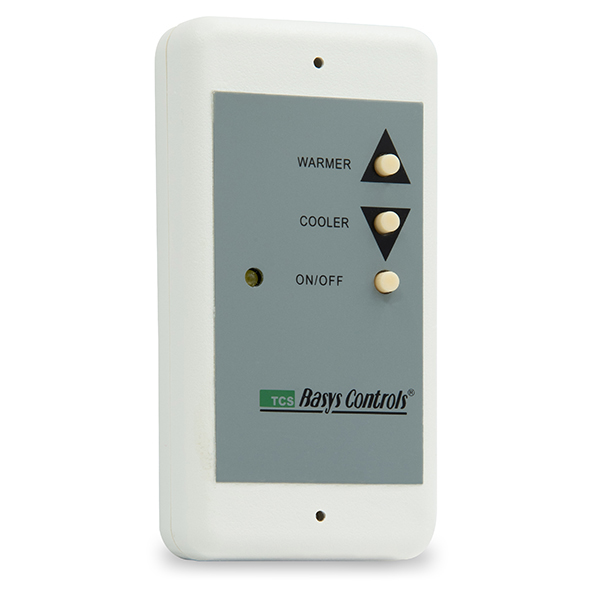

The sensor is enclosed in a ventilated ASB plastic housing with a plastic base. Units feature an override button. They are suitable for mounting to drywall or block, or to a standard 2″ X 4″ handy box using a TQ Series plate adapter.

Where to Buy

Single-point accuracy:

+/–0.1% @ 32°F (0°C)

Temperature coefficient:

0.00385 Ω/Ω/°C

Reference resistance:

1000Ω @ 32°F (0°C)

Compliance:

DIN IEC 751

Response time (90%):

  • Air @1m/s: 25 seconds
  • Air @3m/s: 17 seconds

Operating temperature:

5 mA; recommended: 1 mA

Specifications

Temperature coefficient: 0.00385 Ω/Ω/°C

Reference resistance: 1000Ω @ 32°F (0°C)

Compliance: DIN IEC 751

Response Time: 90%

Air @ 1m/s: 25 seconds

Air @ 3m/s: 17 seconds

Operating temperature: –50 to 375°F (–45.6 to 190.6°C)

Maximun current: 5 mA; recommended: 1 mA

Specifications subject to change without notice
